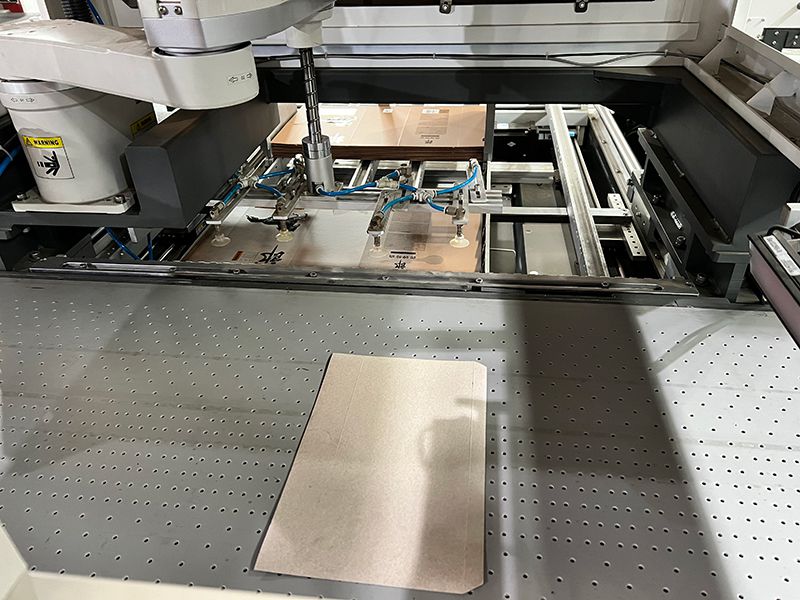

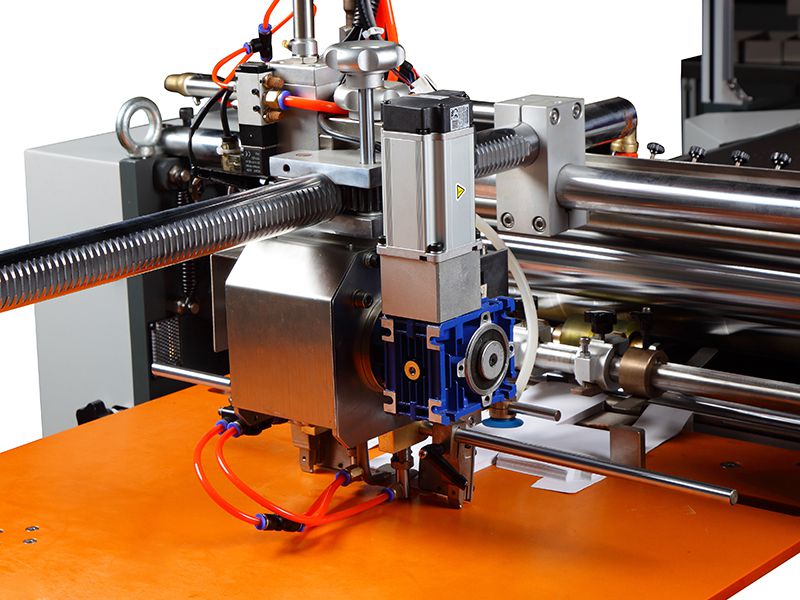

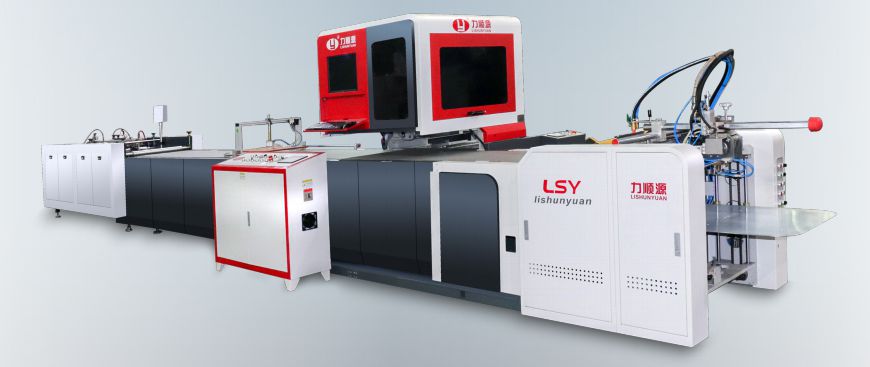

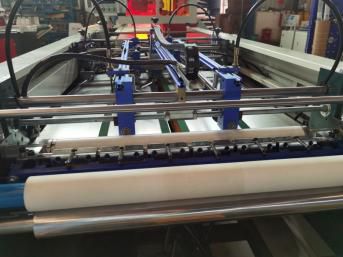

The LY-485C-PK is an automatic case machine for case and hardcover making and lining, suitable for manufacturing all kinds of book covers, document folders or other book-style cases.

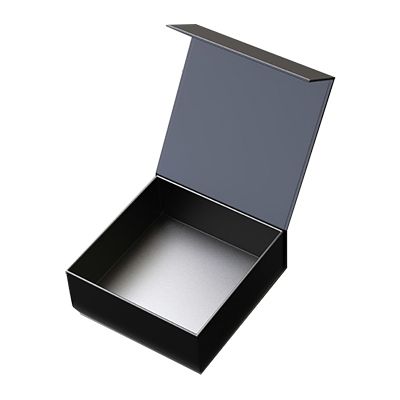

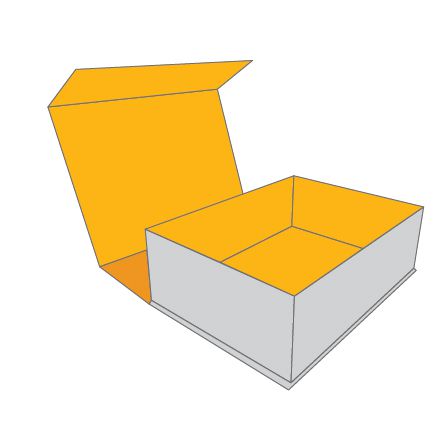

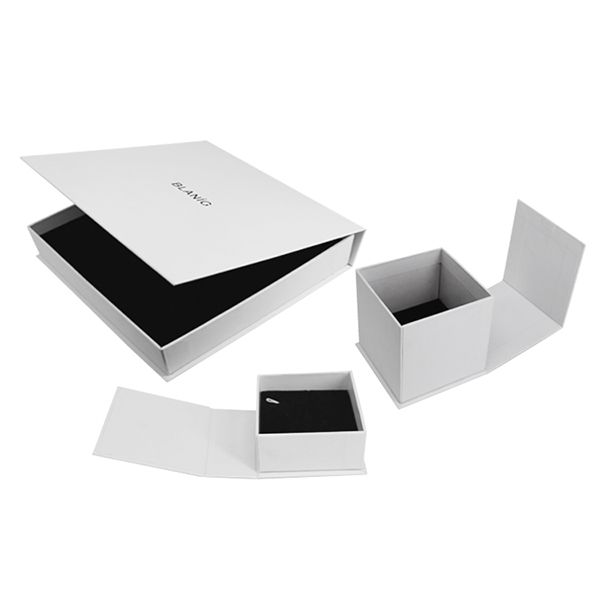

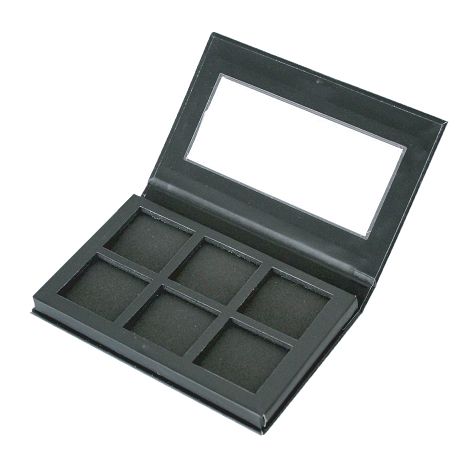

Sample Boxes
| Product Model | LY-485C-PK | |
| Paper Size | W (min) | 95 mm |
| W (max) | 600 mm | |
| L (min) | 120 mm | |
| L (max) | 880 mm | |
| Paper thickness | 80-300 g/m2 | |
| One-piece Cardboard Size | L (min) | 200 mm |
| L (max) | 850 mm | |
| W (min) | 160 mm | |
| W (max) | 450 mm | |
| Minimum Size of Separated Cardboard | 50*85 mm | |
| Cardboard Gap | ≥2 mm | |
| Accuracy | ±0.05 mm | |
| Maximum Power | 12.5 kW | |
| Overall Size | 8800 mm* 2550 mm* 2000 mm | |
| Weight | 3200 kg | |
| Manufacturing Speed | 25-35 sheets/min | |
