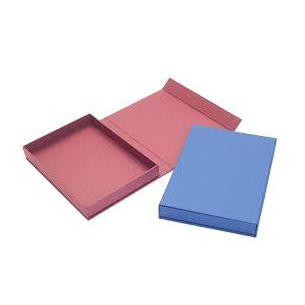

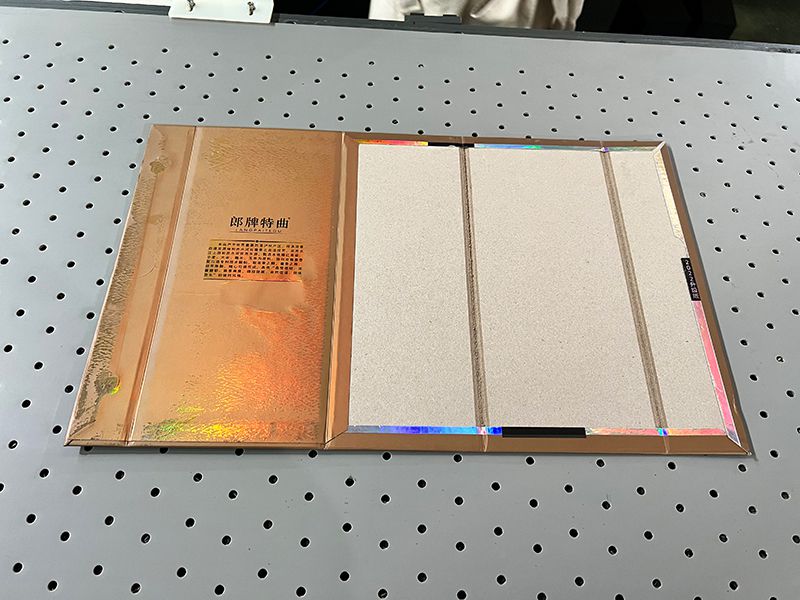

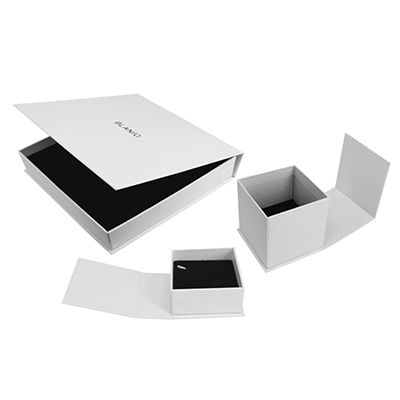

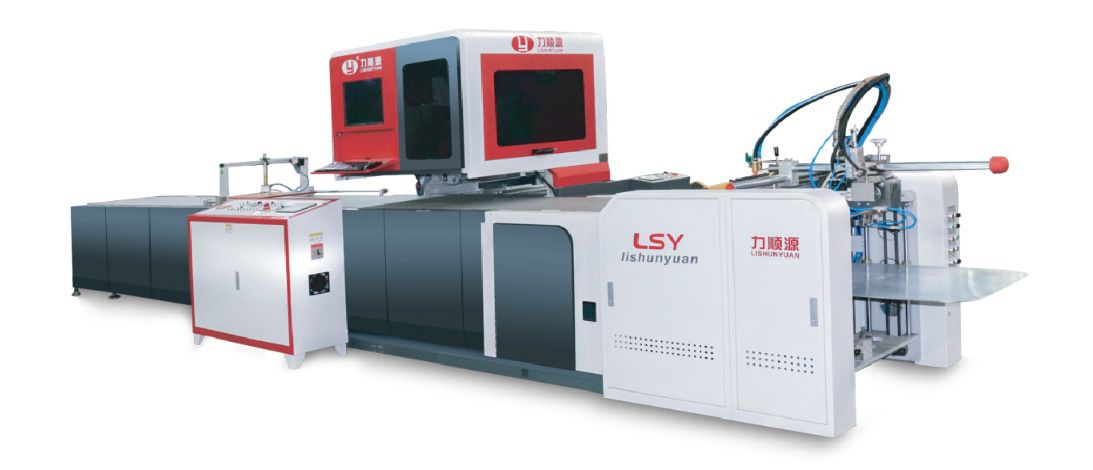

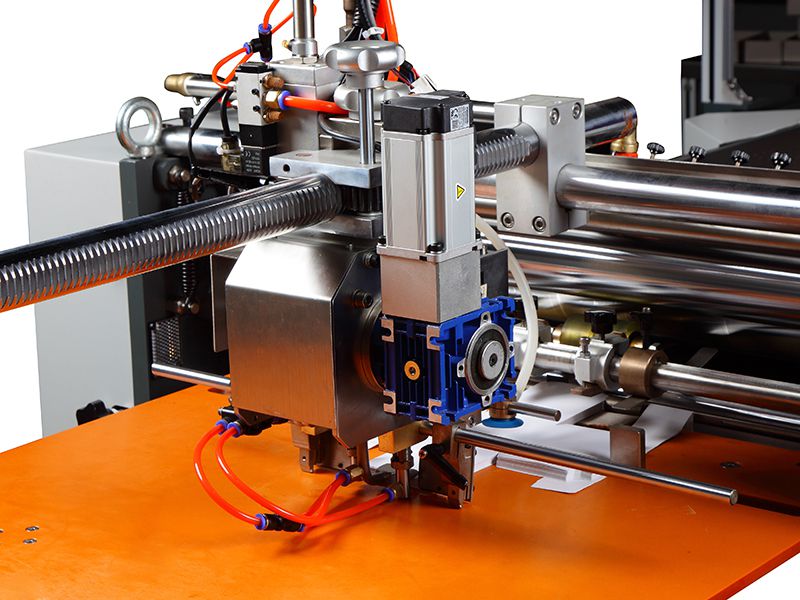

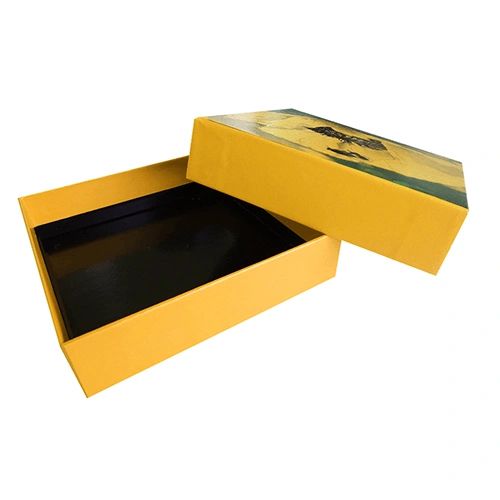

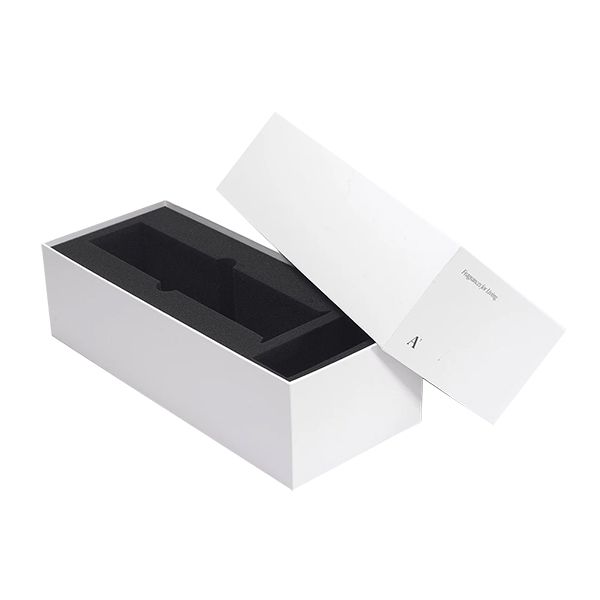

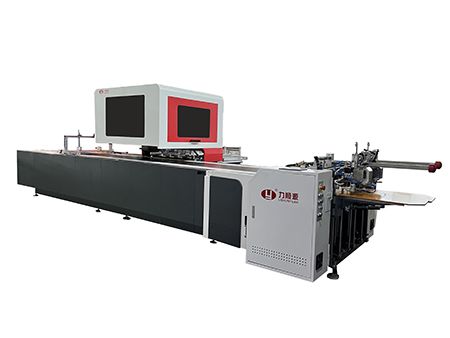

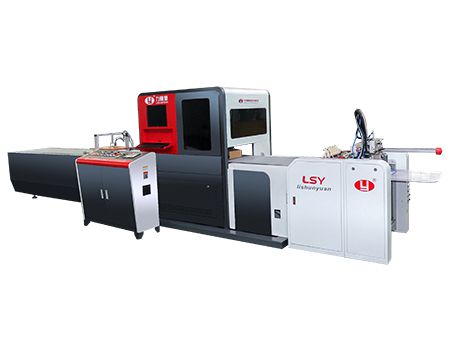

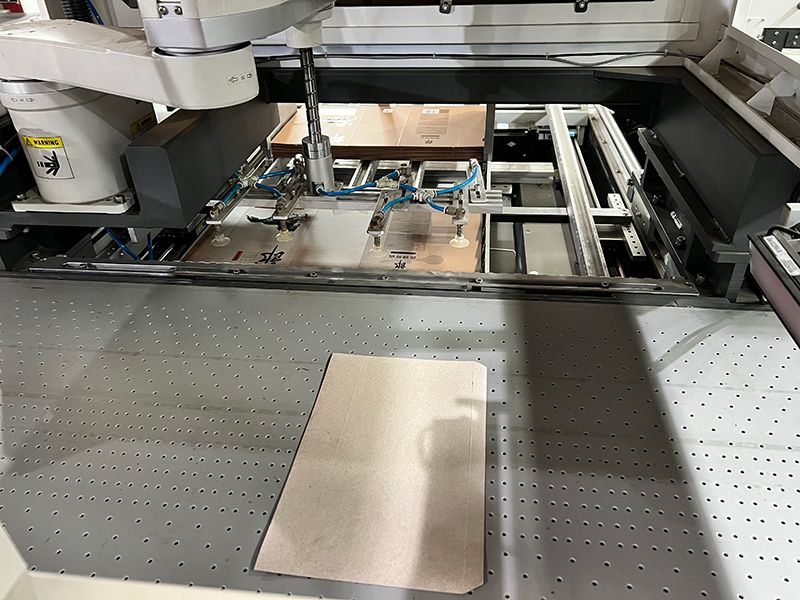

The LY-485C multifunctional visual positioning machine is equipped with advanced features that offer precise positioning for a variety of high-end boxes. The positioning machine’s feeder, gluer, and belt conveyor are separately servo controlled, ensuring smooth performance. Moreover, it comes with a YAMAHA robotic arm and a camera imaging system for accurate positioning, making it perfect for gluing products such as phone boxes, cosmetic boxes, jewelry boxes, watch boxes, wine boxes, cigarette boxes and etc.
The LY-485C multifunctional visual positioning machine has great scalability for future products, as it can be paired with corner pasting machines, cardboard splicer machines, case wrapping machines to create a range of two-piece boxes and cases.
| Paper Size | W (min) | 95 mm |
| W (max) | 600 mm | |
| L (min) | 180 mm | |
| L (max) | 880 mm | |
| Paper Thickness | 80-300 g/㎡ | |
| One-piece Cardboard Size | L min | 180 mm |
| L max | 820 mm | |
| W min | 95 mm | |
| W max | 400 mm | |

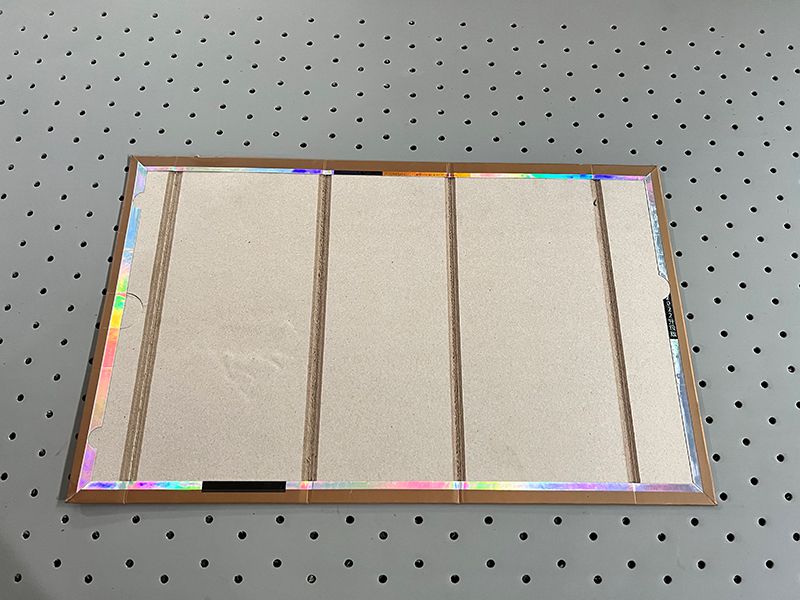

| Minimum Separated Cardboard Size | 50*85 mm | |
| Cardboard Gap | ≥2 mm | |
| Finished Box Size (L*W*H) | min | 600 mm*400 mm*120 mm |
| max | 70 mm*60 mm*15 mm | |
| Manufacturing Speed | 25-35 sheets/min | |
| Positioning Accuracy | ±0.05 mm | |
| Maximum Power | 11.5 kW | |
| Overall Size (L*W*H) | 8000 mm*2550 mm*2000 mm | |
| Weight | 2000 kg | |
About This Product Do You Want More Information?

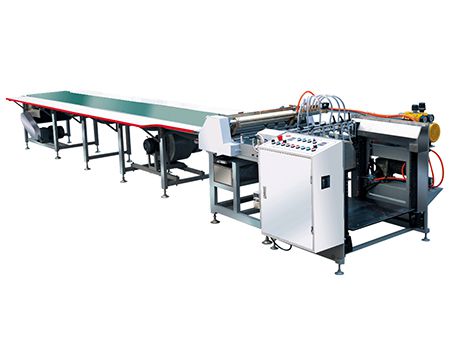

There are some box making Equipment that we featured for choose your best
