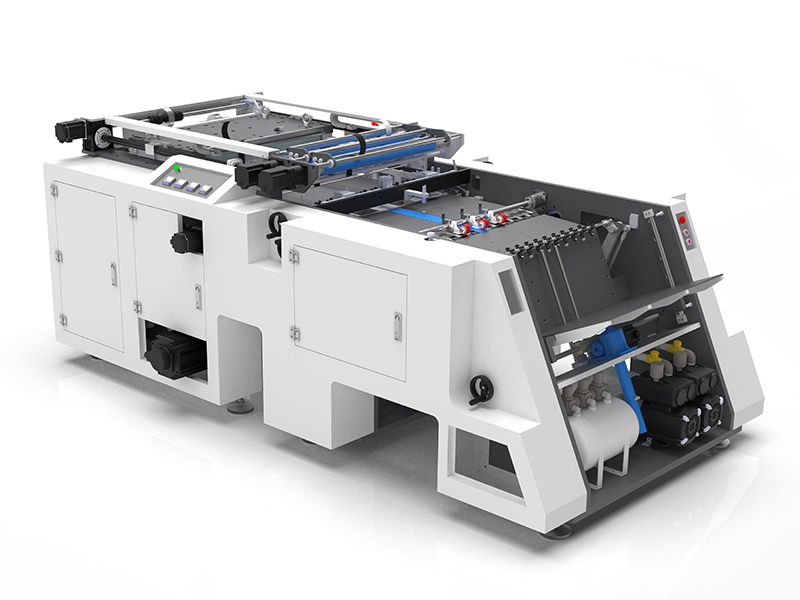

Designed for a broad spectrum of packaging uses, the automatic hot foil stamping machine is used for single-color flat foil stamping, registered embossing, 3D embossed foil stamping, etc. It performs rather well with several kinds of packing paper, including specialty paper, art paper, and fancy paper.

Foil stamping can be applied to a variety of materials, each chosen based on the packaging’s requirements:

• Dual Channel Foil System: Supporting simultaneous two-color and multi-color foiling with various techniques including flat foiling with single color and color in register, 3D stamping, and embossing.

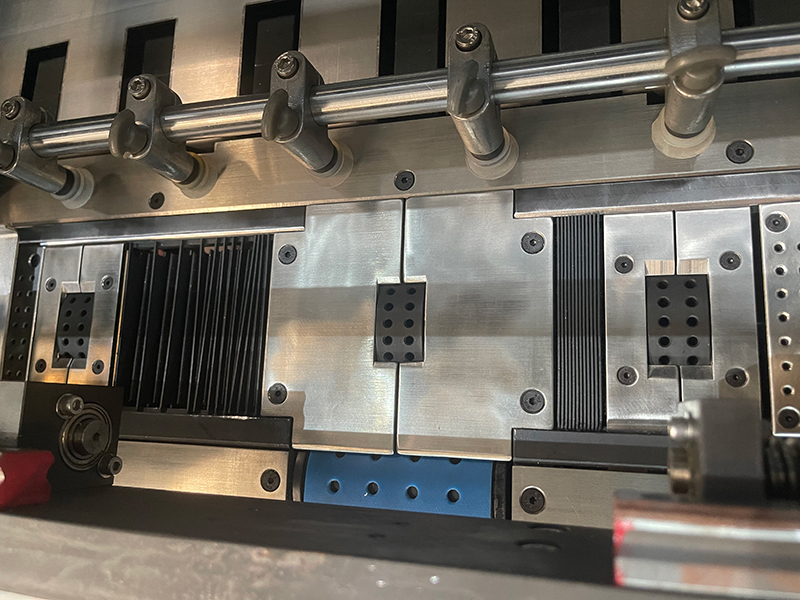

• Precision Accuracy: Packed with front lay, dual side lays, and laser sensors for high-precision positioning (±0.02mm accuracy), 720mm x 460mm as maximum stamping area.
• Adjustable Pressure: Uses a servo-driven pressing device with adjustable pressure up to 4.5 tons/cm². Depending on materials, pressure can be adjusted to get best results.
• Efficient Plate Change: Typically finished in 20 minutes, quick die changes are made possible by offset design between the platen and counter-pressure plate.

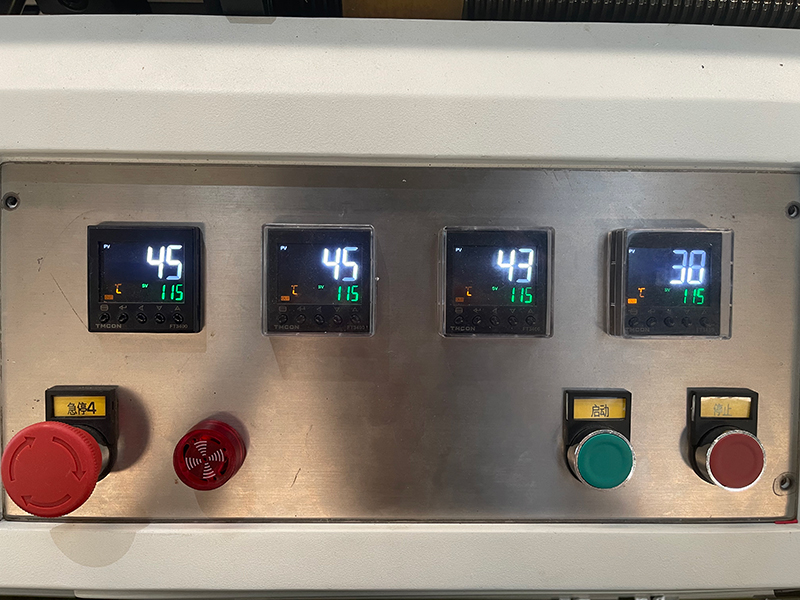

• Four-Zone Temperature Control: Adjustable temperature settings (60-150°C) cater to various paper materials for optimal foiling results.

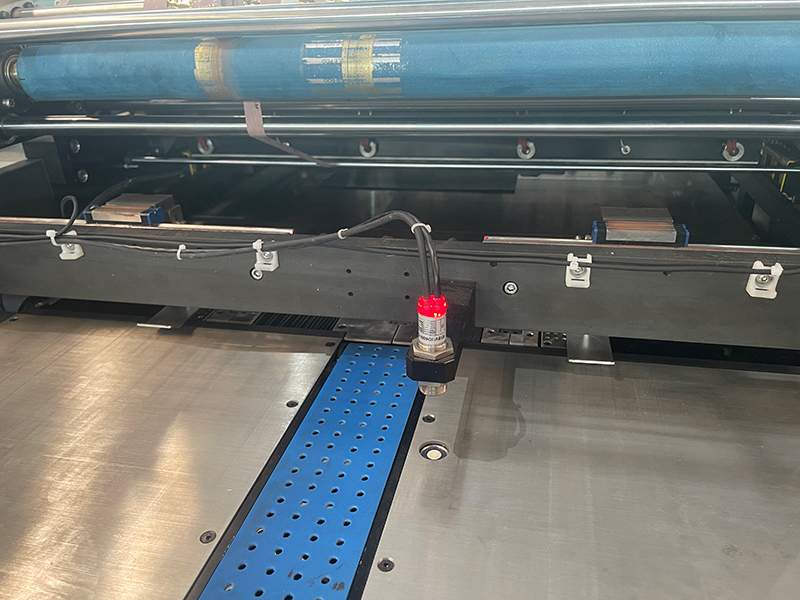

• Paper Detection Sensors: Detects double sheets or missing paper, ensuring automatic paper collection after foiling is completed.
• High Capacity Feeding: Maximum pile height of 350mm. This CAM-driven feeder is able to reach 20 to 25 sheets per minute stamped speed.
• Versatile Application: Featuring a variable frequency suction mechanism, the feeding belt may be exactly changed to manage a wide spectrum of paper weights. This fits materials as thin as 80 gsm and guarantees best paper conveyance throughout the hot stamping operation. Appropriate for gift boxes, wine boxes, and more depending on the packaging use.
